OPzV600-2 2V600AH

Technical Features
1.According to DIN-40742 standards, design life of 20 years
2.Tubular plate & special gel electrolyte,which can prevent active material falling and avoid acid stratification

JYC OPzV battery series (Tubular GEL) battery is developed tubular positive plates with fumed gelled electrolyte. Perfoemances meet or exceed the standards specified in DIN 40742, with long design life and high deep cycling capabilities. This battery is recommended for telecom outdoor

Description of 2V600AH OPzV Battery

OPzV 2V600AH has tubular positive plates and immobilized gel, which gives the battery high reliability and stable performance. By using diecasted positive grid and patented active material formula, its new performance shows much more stronger than the DIN standard values, meanwhile, it offers 20+ years design life in float service. With our revolutionary unique heat sealing and TTP welding technology, the battery has perfect performance in maintenance-free, therefore, the battery represents high cost performance and low annual operating cost. The battery has wide protected operation temperature ranges of -40to 65. OPzV 2V600AH Keep high cycle life at 25(77), 1500 cycles at 80% DOD and 6600 cycles at 20% DOD. The battery is easy to move and handle, and it also has PVC separator, which it is special for gel battery with tiny holes.



Specification of 2V600AH OPzV Battery

Model Name OPzV 2V600AH Length 206mm
Normal Voltage 2V Width 145mm
Capacity@20HR(AH)  600AH Height 680mm
Weight 43.5kg Case ABS(UL94-V0 optional)

Advantages of Integrated whole industry chain

Applications of 2V600AH OPzV Battery

Such as Solar/wind power system, standby power, UPS system, Emergency lighting, transportation, telecommunication, etc.

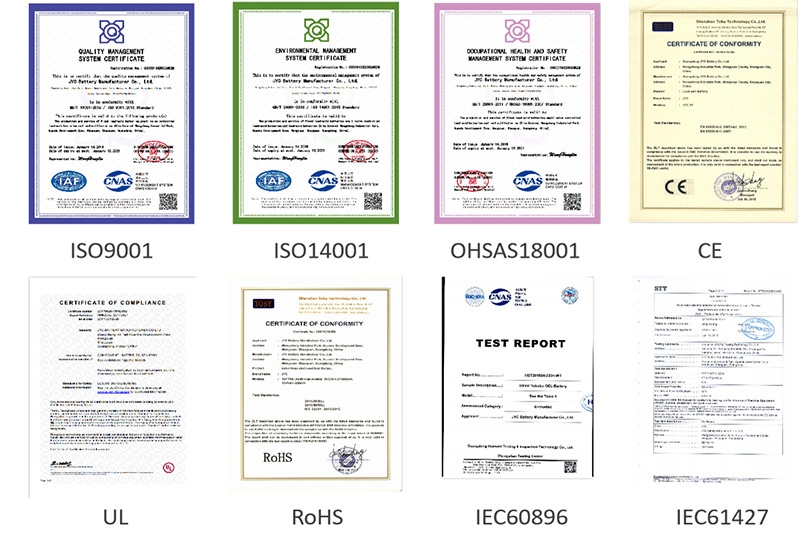

This product meets IEC, BS, JIS, Eurobat standard, UL(MH62092), CE approved.



Solar& wind energy storage system

Advantages:

1. Suitable for deep / shallow cycle.

2. Much longer life of tubular positive plate.

3. Gelled electrolyte, no flow, no leakage, no gradation acid.

4. High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.

5. ABS battery case made by LG raw material to increase battery service life.

6. Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.

7. TTP technique not only reduce internal resistance and  material cost but also increase battery life.

8. Conduct four large current discharge texting before package to insure battery quality.

9. Full charge before delivery. Buy and use it directly.
