opzs-series

Opzs-tubular battery

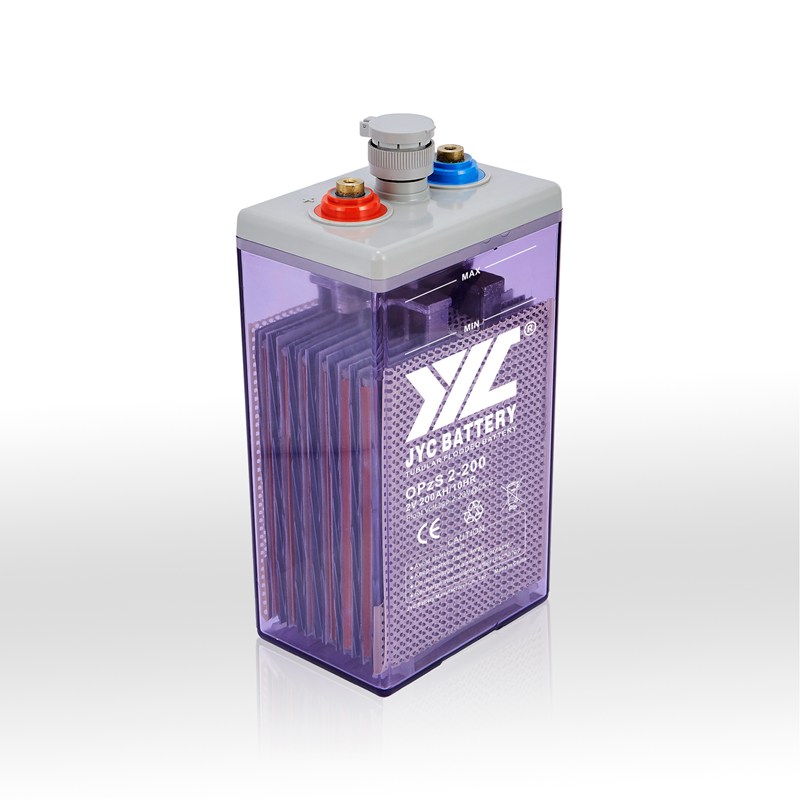

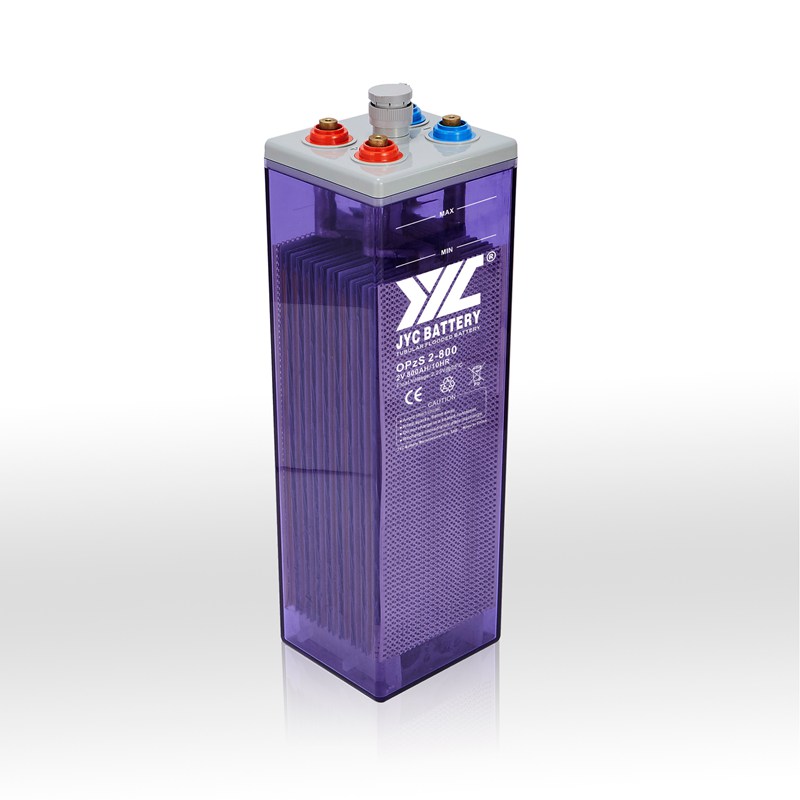

JYC OPzS battery is a traditional tubular plates flooded stationary battery, with low maintenance, acid-proof and explosion-proof, its performance meets or exceeds the standards specified in DIN40736. This battery is most suitable for all standby power applications that require the highest level of reliability and EXTREME environment applications.

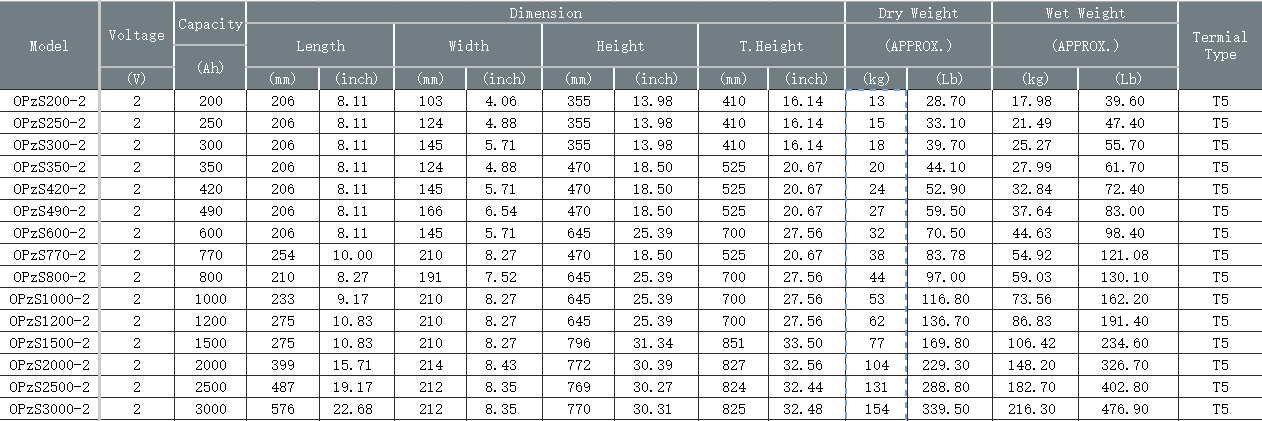

Models
Spercification
Feature
Applications

Voltage: 2V

Capacity range: (C10) 100Ah-3000Ah(25℃)

Low maintenance: replenishment is 3 years

Designed floating life: 20 years(25℃)

Suitable for deep/shallow cycle applications Cycle life: (25℃):

20% DOD: 8000 cycles

50% DOD: 3000 cycles

80% DOD: 2000 cycles

Operation temperature range: -40~65℃

Suitable for deep / shallow cycle.
Low maintenance: Replenishment is 3 years
High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life
ABS battery case made by LG raw material to increase battery service life.
Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.
TTP technique not only reduce internal resistance and material cost but also increase battery life.
Conduct four large current discharge texting before package to insure battery quality.
Full charge before delivery. Buy and use it directly.

Telecommunications

UPS&EPS systems

Solar power/wind power systems

CERTIFICATE

WHY CHOOSE US

CCDR Punching Plate

• Extend service life by 30% • Temperature resistance increased by 20% • Internal resistance is lower than the industry standard by 15
• The self-discharge rate is less than 3%

TTP Welding

• It's different from Traditional Bridge-Welding, it effectively prevents fake welding and short circuits

Quality Assurance

• Air tightness testing
• Internal resistance testing
• Light-weight battery production
• Short-circuit polarity integated testing
• High-tin alloy plate technique
